Continuous Rating – 100 Amps 32v DC max
Intermittent Rating – 150 Amps
Cranking Rating – 500 Amps 5 seconds
Panel thickness: 11.0 max
IP56 rating
Material:
Nut: nylon, black colour. M28
Bolt: brass (M6*P1.0)
Removable Acuator
Material:
Nylon housing with glass fibre (UL frame: 94v-2), black colour, with hot white stamping
Actuator: PBT (UL frame: 94v-0), red colour
Bottom: PBT (UL frame 94v-0), black colour
Name plate: ABS, white colour with black hot stamping

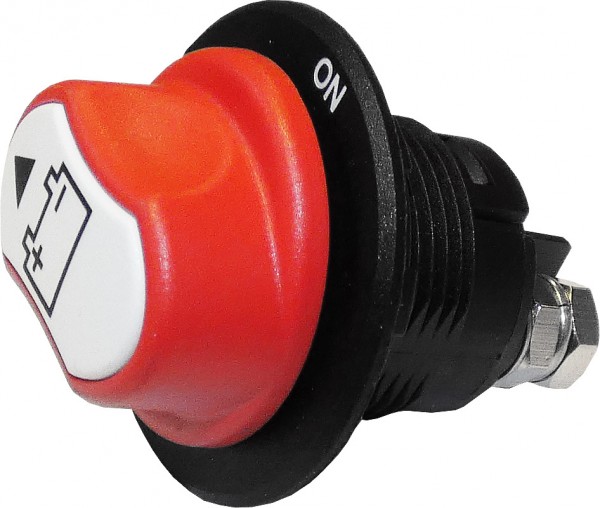

Product Code: SH44
