Continuous Rating – 300 Amps 32v DC max
Intermittent Rating – 450 Amps
Cranking Rating – 1000 Amp 10 seconds

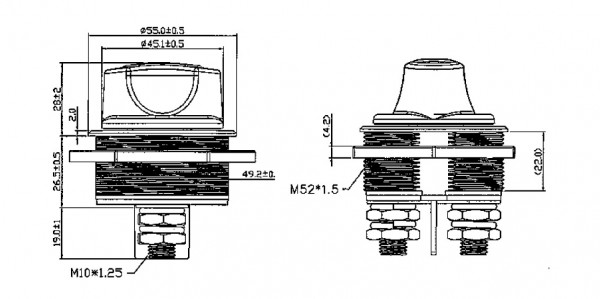

Nut: Nickel Plated Brass M52
Bolt: copper. (M10*P1.25)
Removable Acuator
Material:
Nylon housing with glass fibre (UL frame: 94v-2), black colour, with hot white stamping
Actuator: PBT (UL frame: 94v-0), red colour
Bottom: PBT (UL frame 94v-0), black colour
Name plate: ABS, white colour with black hot stamping
Product Code: SH46
