Continuous rating – 50 Amps 50v DC max
Intermittent Rating – 75 Amps
Cranking Rating – 300 Amps 5 seconds
Material:

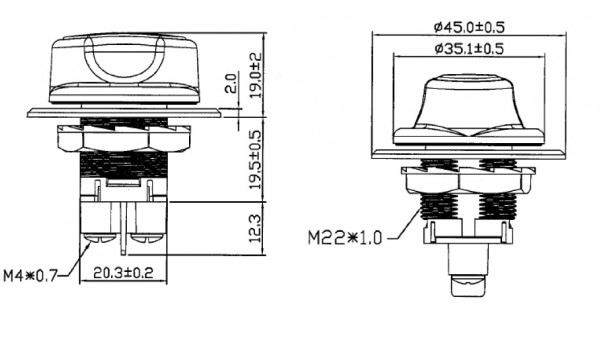

Nut: POM, black colour. M24

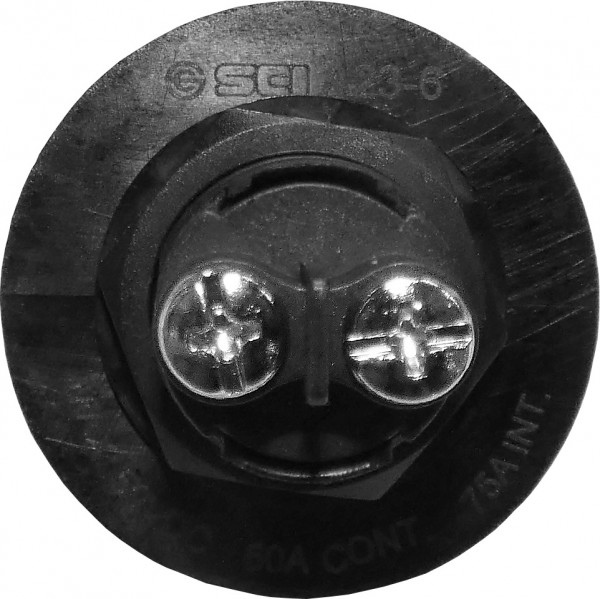

Bolt: Brass (M4*P0.7)
Removable Acuator
Material:
Nylon housing with glass fibre (UL frame: 94v-2), black colour, with hot white stamping
Actuator: PBT (UL frame: 94v-0), red colour
Bottom: PBT (UL frame 94v-0), black colour
Name plate: ABS, white colour with black hot stamping
Product Code: SH43
