Product Details

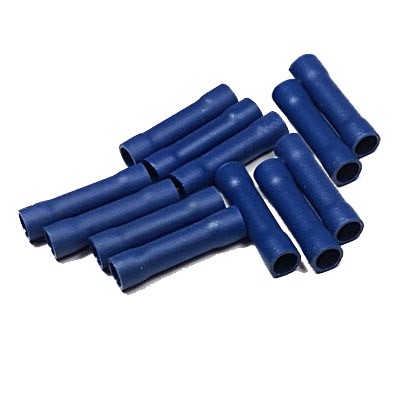

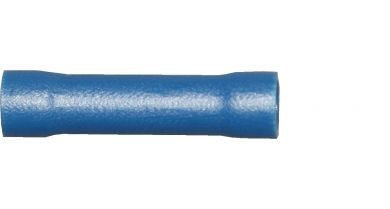

Blue Butt Connector 4.0mm (crimps terminals)

Product Description


Blue Butt Connector 4.0mm.

Suits wire range 1.5 - 2.5mm²

- Conductor: Brass
- Insulation: Vinyl
- Plating: Tin
  • Operating Temperature: -10°C to +75°C
  • Max. voltage rating: 600V
  • Max. current rating: Red - 19A, Blue - 27A, Yellow - 48A
  • Flared barrel for easy wire insertion
  • Wire stop feature to ensure correct wire position
  • Low insertion force and easy crimping whilst ensuring secure termination

All terminals conform to BS4579 and BS4G178.

Technical Spec

Packed in 100's

Technical Datasheet

CodeOptionPrice.
WT16Pack Qty: 1000£29.55
WT16/100Pack Qty: 100£3.70
WT16/500Pack Qty: 500£16.45
