Product Details

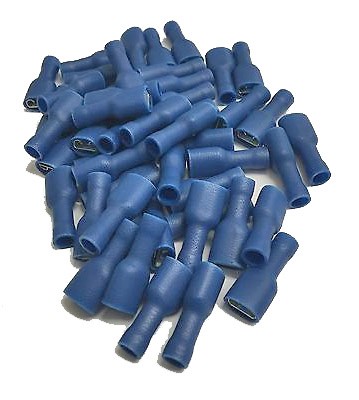

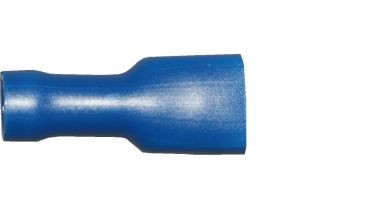

Blue Female Spade 6.3mm Fully Insulated (crimps terminals)

Product Description

Blue Female Spade 6.3mm Fully Insulated

6.3mm is the most popular sized terminal.

All terminals conform to BS4579 and BS4G178. Anti-vibration copper inserts are fitted to all Spades, Piggybacks, Tabs, Bullets and Receptacles.


Conductor: Brass
Sleeve: Copper tubular
Insulation: Vinyl
Plating: Tin

Operating temperature: -10°C to +75°C
Max. voltage rating: 300V
Max. current rating: Red - 10A, Blue - 15A, Yellow - 24A
Flared barrel for easy wire insertion
Low insertion force and easy crimping whilst ensuring secure termination

Technical Spec

Packed in 100's

WT12Pack Qty: 1000£42.25
WT12/100Pack Qty: 100£5.35
WT12/500Pack Qty: 500£23.65
