Main Description

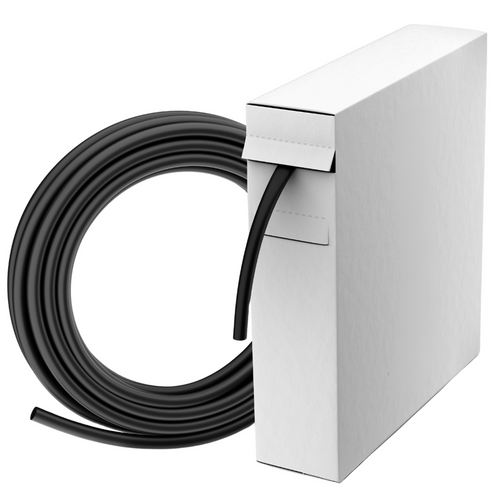

This black dual wall heat shrink tubing is manufactured from polyolefin with an adhesive lining, providing electrical insulation and a moisture-resistant seal in a wide range of applications.
Featuring a 3:1 shrink ratio, the tubing conforms securely around cables, connections and components when heated. The internal adhesive melts during shrinking to help create a protective seal against moisture and environmental contaminants.
Flexible and durable, the tubing is suitable for sealing electrical components, cable harnesses, cable ends and splices. It also provides resistance to fuel, hydraulic fluid and lubricating oil, making it suitable for automotive, electrical and industrial applications.
Technical Data
- Type: Dual wall adhesive lined heat shrink tubing
- Colour: Black
- Material: Polyolefin
- Shrink ratio: 3:1
- Shrink temperature: 80°C
- Operating temperature: -55°C to +125°C
- Longitudinal shrinkage: Less than 5%
- Chemical resistance: Fuel, hydraulic fluid and lubricating oil
- Applications: Electrical components, cable harnesses, cable ends and splices
- Features: Flexible, adhesive lined and designed to provide a moisture-resistant seal
Black Size Range
- 3.2mm Supplied Internal Diameter – Recovers to 1.1mm
- 4.8mm Supplied Internal Diameter – Recovers to 1.6mm
- 6.4mm Supplied Internal Diameter – Recovers to 2.1mm
- 9.5mm Supplied Internal Diameter – Recovers to 3.2mm
- 12.7mm Supplied Internal Diameter – Recovers to 4.2mm
- 19.1mm Supplied Internal Diameter – Recovers to 6.4mm
- 25.4mm Supplied Internal Diameter – Recovers to 8.4mm
- 39mm Supplied Internal Diameter – Recovers to 12.7mm
