Main Description:

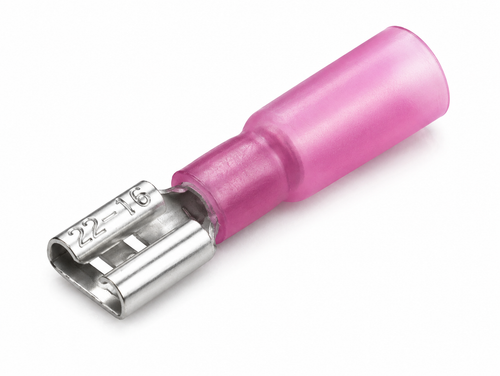

These red fully insulated heat shrink female spade terminals provide a secure and moisture-resistant electrical connection for automotive, marine, industrial, and general wiring applications. Manufactured with a brass conductor, copper tubular sleeve, and tin-plated finish, they offer excellent conductivity and corrosion resistance.
The polyethylene insulation is lined with hot melt adhesive, creating a sealed connection when heated to help protect against moisture, dirt, and vibration. Fully insulated for additional protection, these terminals are designed for easy crimping and secure termination in demanding environments.
Technical Information:
-
- Colour: Red
- Wire Range: 0.5–1.5mm²
- Tab Size: 0.8 x 6.35mm
- Conductor: Brass
- Sleeve: Copper Tubular
- Insulation: Polyethylene
- Plating: Tin
- Fully Insulated Design
- Hot Melt Adhesive Lined
- Shrink Temperature: +125°C to +180°C
- Operating Temperature: -45°C to +125°C
- Maximum Voltage: 600V
